Flow Meter · NT-VMF

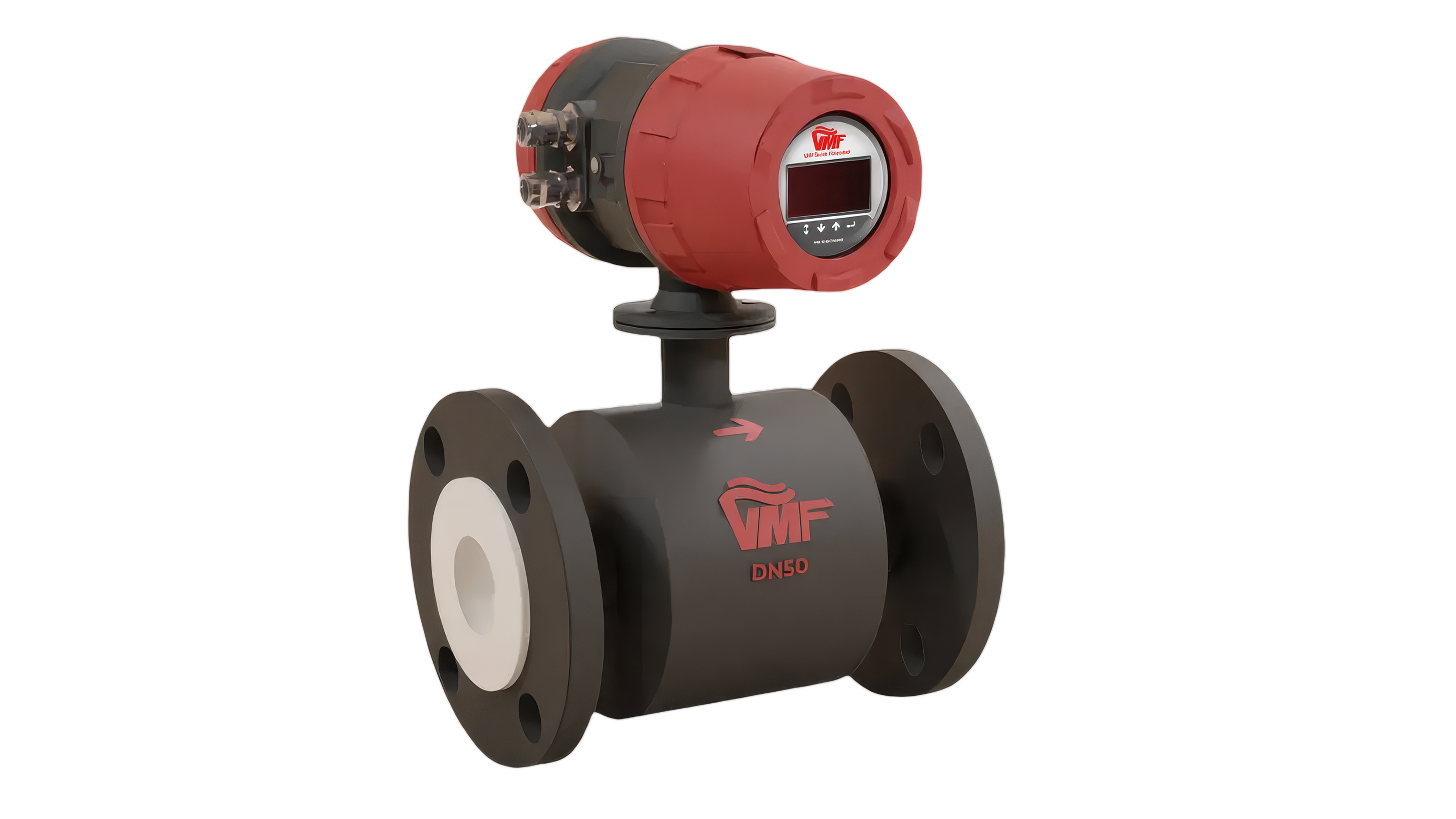

Electromagnetic Flow Meter

Precision-engineered for any conductive liquid, no moving parts, no pressure drop, no maintenance. Configured to your media and calibrated under TÜRKAK accreditation.

★ Bestseller Made in Türkiye TÜRKAK Certified
Request a Quote Datasheet
360° · 3D Electromagnetic Flow Meter DN3 – DN3000 · 316L body FIELD COILS ELECTRODES 128.4 m³/h 4–20mARS485 ModbusHART · Pulse TÜRKAKAB-0354-K±0.27%
DN3–DN3000Pipe diameter
±0.2%Accuracy (opt.)
IP65 / 67 / 68Protection
4–20mA / HARTOutput
±0.27%Calibration
Product Tour

Meet the electromagnetic flow meter

Scroll to take the meter apart, body, sensor, transmitter and the calibration behind it, then see it whole again.

01, Body & Flanges

316L stainless, sealed for the field

  • Carbon or 304 / 316 stainless body
  • IP65 / IP67 / IP68 ingress protection
  • DN3 → DN3000mm · DIN / ANSI / JIS
02, Sensor & Physics

Faraday's law, no moving parts

Field coils create a magnetic field across the bore; the flowing liquid induces a voltage read by two electrodes.

  • Zero pressure drop, no wear
  • Minimum conductivity ≥5 μS/cm
03, The Transmitter

Round head, reads at a glance

  • 4–20mA, Pulse, RS485 Modbus
  • HART & Profibus optional
  • 3-line LCD · instant + total
04, The Assurance

TÜRKAK-accredited calibration

  • AB-0354-K · ISO/IEC 17025:2017
  • Uncertainty ±0.27%
  • Recognized in 100+ countries
Complete

Engineered as one instrument

Body, sensor, electronics and certificate, built and calibrated together in Konya, ready for your process.

Scroll
Product Tour

Engineered to measure, built to last

Tap a part to explore it in 3D, or let the guided tour walk you through the meter, inside and out.

360° · 3D 128.4 m³/h TÜRKAK AB-0354-K ±0.27%
01, The Transmitter

Round head, reads at a glance

The signal-conditioning electronics and 3-line LCD live in a sealed round transmitter head, mountable compact or remote.

  • 4–20mA, Pulse, RS485 Modbus
  • HART & Profibus optional
  • 3-line LCD · instant + total
02, Sensor & Physics

Faraday's law, no moving parts

Field coils create a magnetic field across the bore; the flowing liquid induces a voltage read by two electrodes, proportional to flow.

  • Zero pressure drop, no wear
  • Minimum conductivity ≥5 μS/cm
  • Six electrode alloys: 316L → Tantalum
03, Body & Flanges

316L stainless, sealed for the field

  • Carbon or 304 / 316 stainless body
  • IP65 / IP67 / IP68 ingress protection
  • DN3 → DN3000mm · DIN / ANSI / JIS
  • Six liners: Hard Rubber → PTFE / PFA
04, The Assurance

TÜRKAK-accredited calibration

Every meter is calibrated and certified before dispatch, with a traceable certificate that travels with the instrument.

  • AB-0354-K · ISO/IEC 17025:2017
  • Uncertainty ±0.27%
  • Recognized in 100+ countries
Overview

The reference standard for conductive-liquid flow

The NT-VMF electromagnetic flow meter measures the volumetric flow of any electrically conductive liquid, from clean drinking water to aggressive acids and abrasive slurries. Because measurement relies on Faraday's law of induction rather than a mechanical element, there are no moving parts inside the bore: nothing to wear, nothing to obstruct flow, and nothing to maintain.

An unobstructed bore makes it ideal for liquids carrying solids, fibres or sediment, where turbines and orifice plates clog. Liner and electrode materials are selected to match your media, six liners from economical hard rubber to chemical-grade PTFE and PFA, and six electrode alloys from standard 316L up to tantalum for nearly any corrosive.

TÜRKAK Calibration Assurance

Every meter is calibrated on our ISO/IEC 17025:2017 accredited rig (AB-0354-K) at ±0.27% uncertainty before dispatch, a traceable, internationally recognized certificate ships with the instrument.

Working Principle

Faraday's law of electromagnetic induction

Field coils above and below the bore generate a magnetic field across the pipe. As a conductive liquid flows through it, a voltage is induced proportional to the flow velocity. Two electrodes set flush in the pipe wall pick up this voltage and the transmitter converts it to volumetric flow.

Because the bore is completely clear, there is no pressure loss, no obstruction and no part to wear, measurement stays accurate for years, even on dirty or fibrous liquids.

FIELD COIL (N) FIELD COIL (S) E− E+ U ∝ v
Where & How It's Used

Proven across the process industries

Water Treatment

Raw-water intake totals, filtration line monitoring and chlorine-dosing control, feeding SCADA over 4–20mA or Modbus.

Wastewater

Inlet flow, aeration feed and sludge pumping. The clear bore handles solids, fibres and grit with zero clogging risk.

Municipal Networks

Main-line metering and DMA stations for district monitoring and non-revenue-water leak detection.

Chemical Processing

Acid/base dosing, reactor feed and cooling circuits, with Hastelloy or tantalum electrodes for aggressive media.

Food & Beverage

Milk intake, juice and CIP wash lines using PTFE/PFA liners and 316L electrodes for hygienic transfer.

Power & Energy

Boiler feed water, condensate return and cooling-tower circuits, PTFE liner rated to +180°C.

Configure

Which liner & electrode do I need?

Pick the liquid you're measuring, we'll recommend the right liner and electrode from our range, and highlight them in the tables below.

Recommended Liner
Hard Rubber
Economical, durable lining for clean and raw water at low temperature.
Recommended Electrode
SS 316L
Standard, most economical electrode for water, wastewater and mild media.
Liner range
PTFE−40→180°C · acids, high temp, general
Hard Rubber−10→80°C · clean & raw water
Neoprene−10→70°C · wastewater, low-pressure
F46 (FEP)−20→120°C · food, mid-temp chemical
PFA−40→180°C · high-purity, pharma
Polyurethane−10→60°C · abrasive slurry, mining
Electrode range
SS 316LWater, wastewater, mild chemicals
Hastelloy BHCl, phosphoric, non-oxidizing acids
Hastelloy CHNO₃, H₂SO₄, chlorinated, oxidizers
TitaniumSeawater, brine, hypochlorite
TantalumAqua regia, nearly all chemicals
PlatinumExtreme corrosives, special use
Technical Specifications

Full datasheet, NT-VMF

ParameterValue
Product codeNT-VMF
Pipe diameterDN3 – DN3000 mm (1/8″–120″)
Flow velocity0.2 – 15 m/s
Accuracy±0.5% std · ±0.3% / ±0.2% opt.
Body materialCarbon / SS 304 / 316
Coil material99% copper
LinerPTFE · Neoprene · Hard Rubber · F46 · PFA · PU
ElectrodeSS316L · Hastelloy B/C · Ti · Ta · Pt
ConnectionFlange, DIN / ANSI / JIS / custom
Output signal4–20mA · Pulse · RS485 · HART (opt.) · Profibus (opt.)
Display3-line LCD (instant + total)
ProtectionIP65 / IP67 / IP68 (opt.)
Power supplyAC 85–250V / DC 20–36V
Ambient temp.−25°C ~ +60°C
Pressure rating0.6 / 1.0 / 1.6 / 2.5 / 4.0 MPa
Conductivity≥5 μS/cm
CalibrationTÜRKAK AB-0354-K · ±0.27% uncertainty
CertificatesCE declaration · ISO 9001
Related Instruments

You might also need

Food & Beverage
Flow · NT-VMF-W

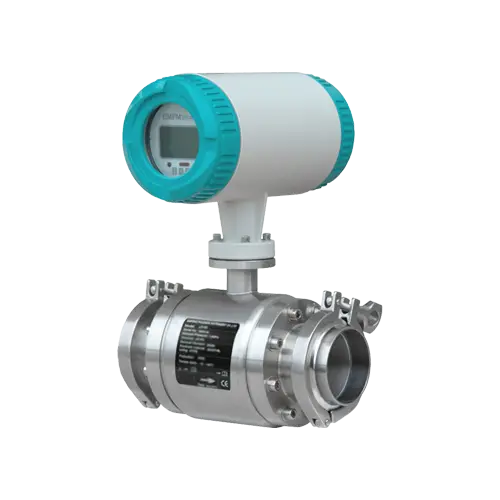

Food-Grade Flow Meter

Hygienic tri-clamp version for dairy and beverage lines.

Learn more
Large Pipe
Flow · NT-VMF-I

Insertion Flow Meter

Retrofit large mains without cutting the pipe.

Learn more
Heavy Duty
Flow · NT-VMF-S

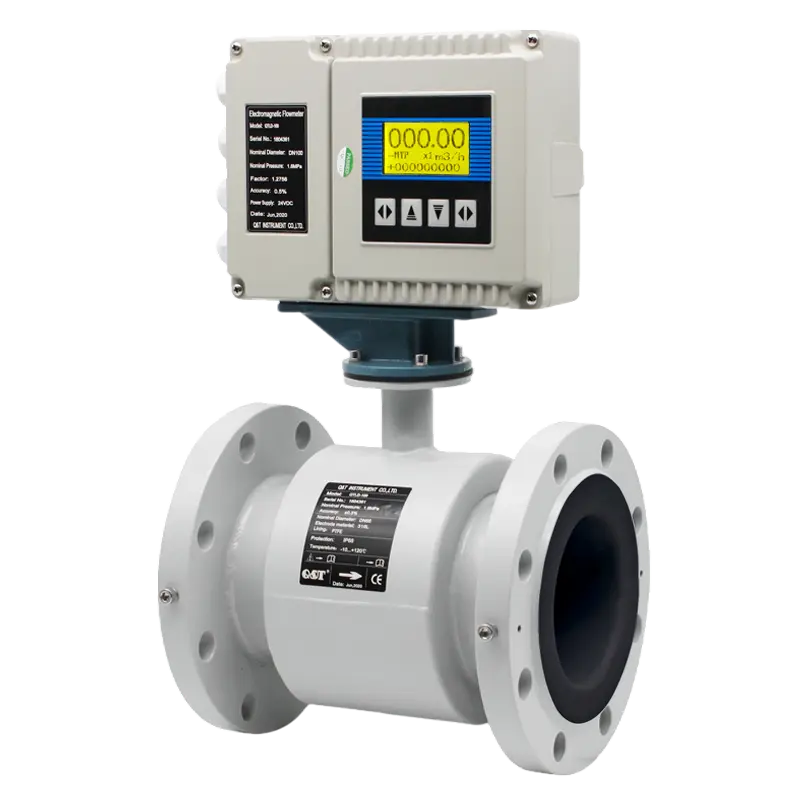

Slurry Flow Meter
